🔔 Sprinkler System Alarm Bell (Water Motor Gong Alarm)
Origin: Fujian, China
🔧 Product Overview

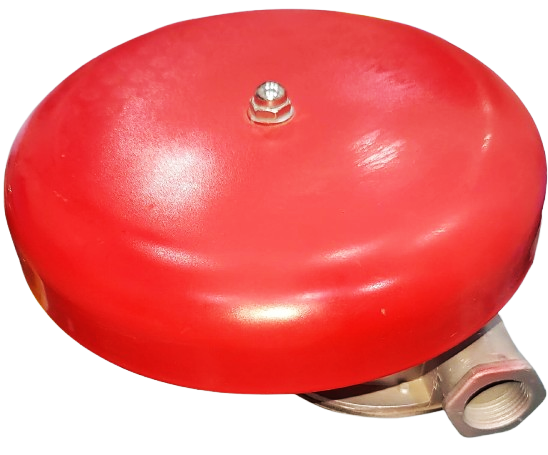

The Water Motor Gong, also known as the Sprinkler Alarm Bell, is a hydraulically driven audible alarm that operates without any electrical power.

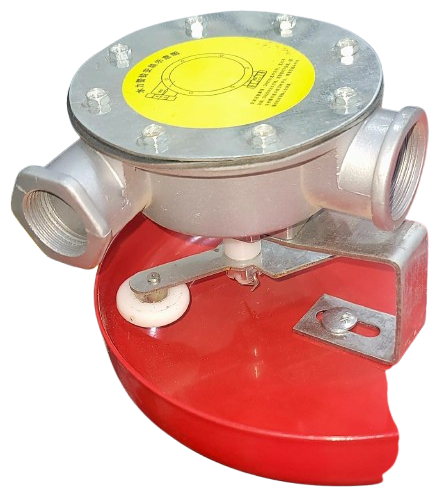

When the sprinkler system is activated due to fire or pressure discharge, water passes through the gong body and drives the impeller, causing the shaft and striker assembly to rotate. This movement produces a continuous ringing sound for as long as water flow continues, ensuring immediate notification of sprinkler activation.
Designed for reliability and durability, this alarm provides essential fire warning signals for commercial, industrial, and residential fire protection systems.
⚙️ Technical Specifications
| Parameter | Details |
|---|---|
| Country of Origin | China |
| Model Number | ZSJL-120 |
| Material | High-Grade Iron |
| Surface Finish | Fusion-Bonded Epoxy (FBE) Coating |
| K Factor | 5.28 |
| Alarm Pressure | ≤ 5 PSI (0.035 MPa) |
| Alarm Sound Level | ≥ 70 dB @ 5 PSI |
| Water Pressure Range | 5 – 175 PSI |
| Drive Shaft Material | Aluminum Alloy |
| Packaging Size | 32 × 25 × 28 cm |
| Gross Weight | 1.0 kg |
| Selling Unit | Single Item |
💡 Key Features & Benefits
-
No Electrical Power Required – Fully hydraulic operation for dependable performance during power failures.
-
Durable Construction – FBE-coated iron body provides long-lasting corrosion protection.
-
High Sensitivity – Rapid response to sprinkler water flow for instant alarm activation.
-
Clear Audible Output – Produces sound levels above 70 dB for effective coverage.
-
Easy Installation & Maintenance – Compact and user-friendly design suited for various system layouts.
🏭 Typical Applications
-
Automatic Sprinkler Systems in commercial and residential complexes
-
Industrial facilities and manufacturing plants
-
Warehouses and logistics centers
-
Hospitals, schools, and high-rise buildings
