EDWARDS Signature Driver Controller Modules
Models: 3-SDC1, 3-SSDC2 & 3-SDDC2
Intelligent Signature Loop Controller Technology
The Edwards Signature Driver Controller Modules provide the intelligent interface between the EST3/EST4 Fire Alarm Control System CPU and Signature Series addressable devices. These modules utilize dedicated onboard microprocessors to coordinate, process, and manage communications with Signature detectors and modules through fully digital communication technology. They support advanced device mapping, diagnostics, distributed intelligence, and high-speed communication for superior system performance.
Product Overview

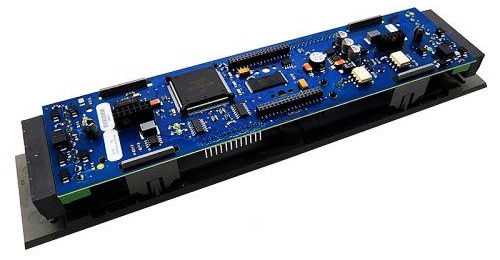

3-SDC1 Signature Driver Card
The 3-SDC1 Signature Device Card is used to add or expand a Signature Data Circuit (SDC). It supports one loop of Signature devices with up to 125 intelligent detectors and 125 intelligent modules. The card is commonly used to upgrade a 3-SSDC1/3-SSDC2 Single Driver Controller to a 3-SDDC1/3-SDDC2 Dual Driver Controller, or to add a second Signature loop to compatible EST3X controllers.
3-SSDC2 Single Signature Driver Controller

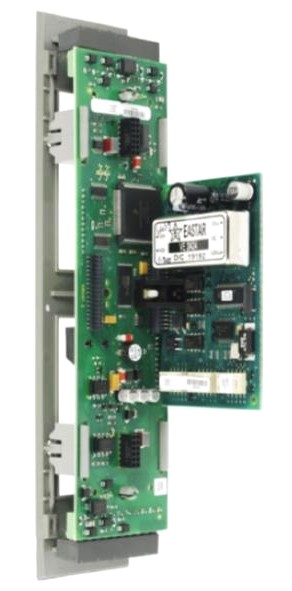

The 3-SSDC2 provides one Signature Data Circuit and includes one 3-SDC1 device card. It serves as the communication interface between the control panel CPU and Signature Series devices.
3-SDDC2 Signature Dual Driver Controller
The 3-SDDC2 supports two Signature Data Circuits and includes two 3-SDC1 cards. It allows expansion of system capacity while occupying only one local rail module space.
Key Features
- Dedicated onboard microprocessor control.
- Fully digital communication technology.
- Supports Signature Series detectors and modules.
- Automatic device mapping and location supervision.
- Non-volatile storage of device connection sequence.
- Class A, Class B and Class X wiring configurations.
- Distributed intelligence architecture.
- Supports carbon monoxide, smoke, heat and input/output devices.
- Removable field wiring terminals for easy installation.
- Backward compatible with previous Signature controller generations.
Capacity
| Description | Per 3-SDC1 Card |
|---|---|
| Intelligent Detectors | Up to 125 |
| Intelligent Modules | Up to 125 |
| Total Addressable Devices | Up to 250 |
| Communication Type | 100% Digital |
| Loop Wiring Style | Class A, B or X |
| Maximum Loop Distance | Over 11,000 ft (3,300 m) |
Technical Specifications
| Description | 3-SSDC2 | 3-SDDC2 |
| Signature Loops | 1 | 2 |
| Included 3-SDC1 Cards | 1 | 2 |
| Installation | Local Rail Mount | Local Rail Mount |
| Operating Voltage | 24 VDC Nominal | 24 VDC Nominal |
| Detectors Supported | 125 per Loop | 125 per Loop |
| Modules Supported | 125 per Loop | 125 per Loop |
| Communication Format | 100% Digital | 100% Digital |
| Wiring Style | Class A, B, X | Class A, B, X |
| Operating Temperature | 0°C to 49°C | 0°C to 49°C |
| Relative Humidity | 93% Non-Condensing | 93% Non-Condensing |
Compatible Devices
The Signature Driver Controller Modules support the complete Edwards Signature Series product range including:
- SIGA-OSD Intelligent Optical Smoke Detectors
- SIGA-OSHD Multisensor Smoke & Heat Detectors
- SIGA-HRD & SIGA-HFD Heat Detectors
- SIGA-SD Duct Smoke Detectors
- SIGA-270 & SIGA-278 Manual Pull Stations
- Signature Input/Output Modules
- Carbon Monoxide Detectors
- Genesis Series Notification Appliances
Benefits
✔ Supports up to 250 addressable devices per loop
✔ Fast digital communication and diagnostics
✔ Automatic device mapping and supervision
✔ Flexible loop expansion capability
✔ Compatible with EST3, EST3X and EST4 platforms
✔ Distributed intelligence for enhanced reliability
✔ Backward compatibility with existing installations
✔ Simplified installation and maintenance
