High Pressure Water Mist Nozzle

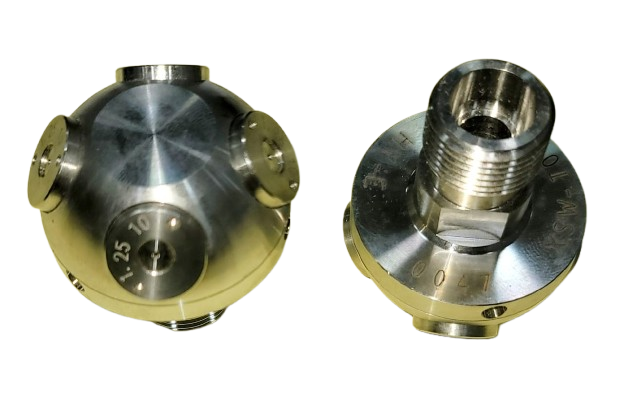

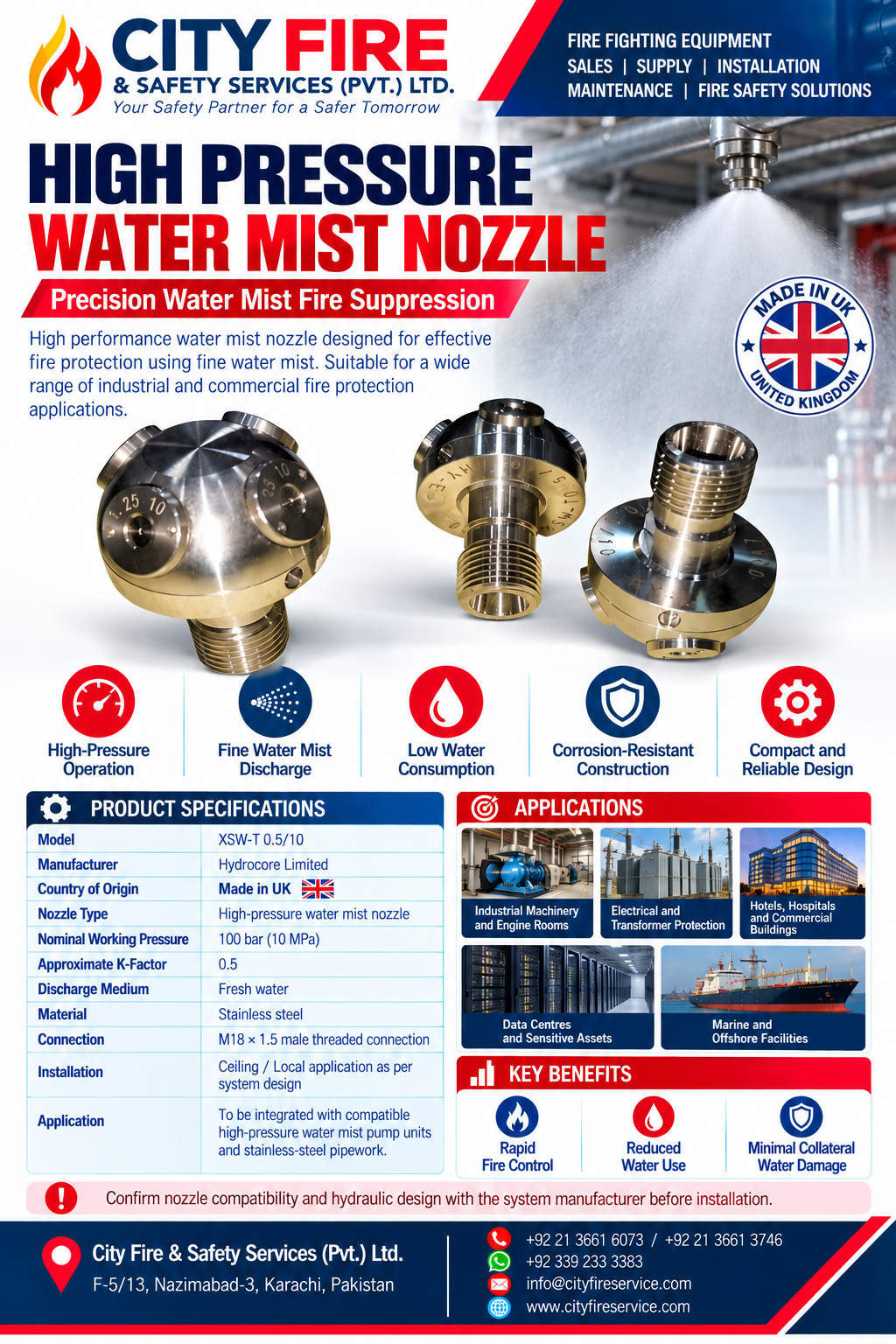

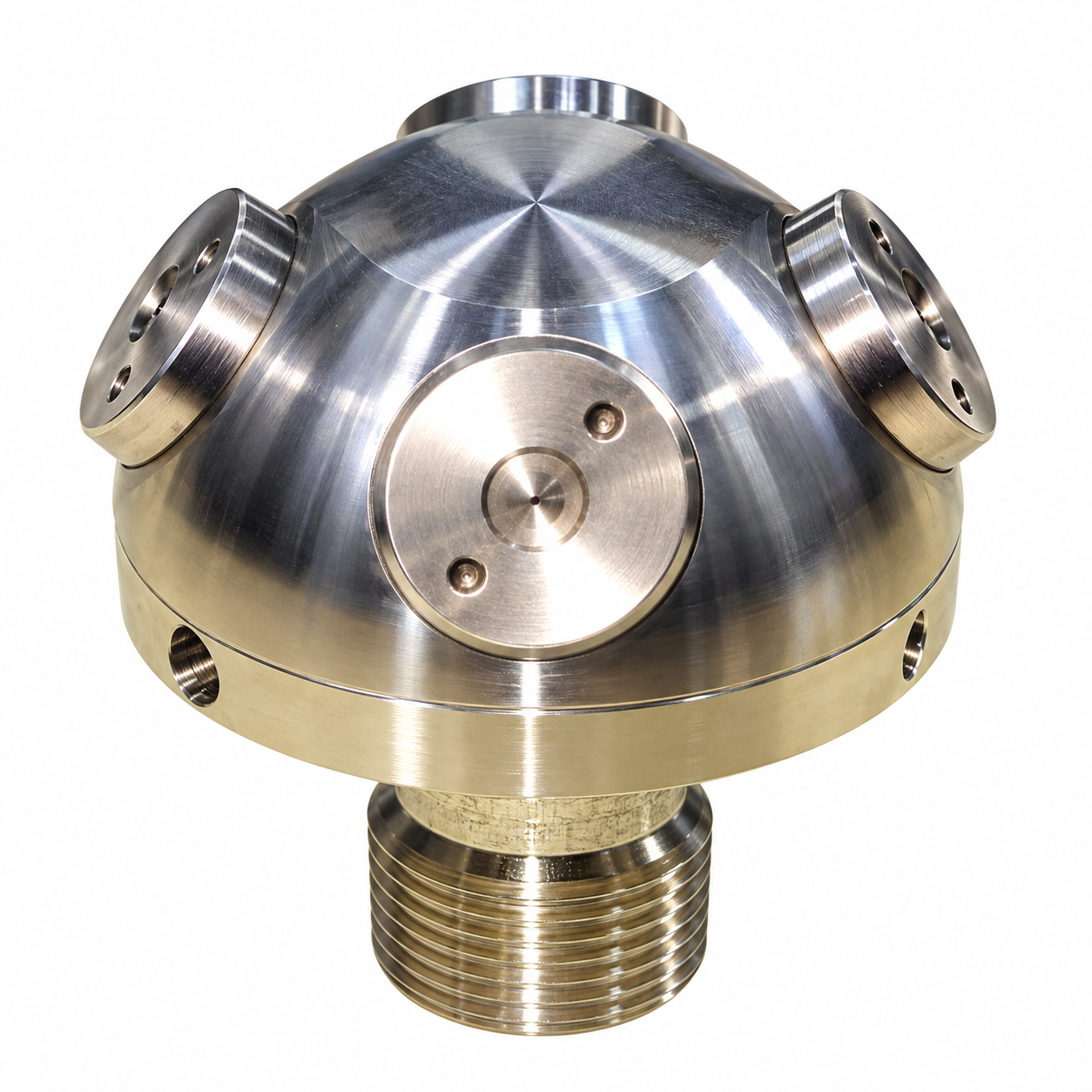

🔥Hydrocore High Pressure Water Mist Nozzle

Model: XSW-T 0.5/10

Manufacturer: Hydrocore Limited
 Craven House, Harpings Business Park, Harpings Road, Hull, East Yorkshire, United Kingdom

📌Product Description

The Hydrocore XSW-T 0.5/10 is a specific specification used in high-pressure fine water mist fire systems, for applications such as forest fire fighting. The total cost depends heavily on the specific system configuration, installation requirements. Radiant heat absorption—while using significantly less water than conventional sprinkler systems.

Manufactured to stringent quality standards in the UK, this nozzle forms an integral part of Hydrocore High Pressure Water Mist Fire Protection Systems for total flooding and local application designs.

📌Key Features

• High Pressure Operation: Optimized for ~100 bar (10 MPa) systems

• Fine Water Mist Discharge: Enhanced fire knock-down and cooling efficiency

• Low Water Consumption: Minimal water damage and reduced system demand

• Robust Construction: Corrosion-resistant stainless steel for long service life

• Compact & Reliable: Suitable for confined and sensitive environments

• System Compatible: Designed for integration with Hydrocore pump units and stainless-steel pipework

📌 Typical Technical Data

📌 Inlet Thread Size & Type

✔ Standard Connection: M18 × 1.5 threaded connection
✔ Thread Type: Metric fine thread
✔ Typical for HPWM Nozzles: M18 × 1.5 as the male threaded inlet that connects into the branch piping

💡Applications

• Industrial machinery & engine rooms

• Electrical & transformer protection

• Hotels, hospitals & commercial buildings

• Data centres, archives & sensitive assets

• Marine, offshore & infrastructure projects

📌System Benefits

• Rapid fire control with minimal collateral damage

• Reduced water storage and pump capacity compared to sprinklers

• Environmentally responsible fire suppression solution

• Proven performance in high-risk and occupied spaces
