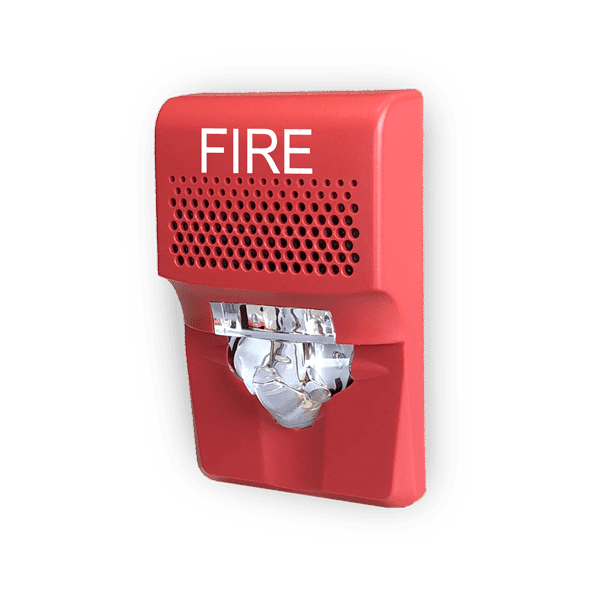

EDWARDS Genesis LED Wall Horn-Strobe – G1AVRF
Compact Audible & Visual Notification Appliance
The G1AVRF is a compact wall-mounted Horn/Strobe Notification Appliance from the Edwards Genesis LED G1 Series. It combines a high-performance audible horn and LED visual strobe in a low-profile housing, providing effective emergency notification for fire alarm and life safety systems. The device is designed for commercial, industrial, healthcare, educational, and institutional applications requiring both audible and visual occupant notification.
Key Features
Combined Horn & Strobe Notification
- Integrated audible horn and visual LED strobe.
- Provides simultaneous audio and visual emergency signaling.
- Suitable for fire alarm and evacuation notification systems.
Field-Selectable Strobe Output
- Adjustable strobe settings:
- 15 Candela
- 30 Candela
- 75 Candela
- Candela selection can be changed without removing the device from the wall.
Configurable Horn Operation
- Selectable High or Low dB output.
- Temporal-3 (T3) or Continuous tone operation.
- Supports NFPA 72 compliant Temporal-3 fire alarm signaling.
Energy-Efficient LED Technology
- Advanced LED optics reduce current consumption.
- Lower power requirements than traditional xenon strobes.
- Supports larger appliance counts on NAC circuits.
Low-Profile Design
- Compact modern appearance.
- Approximately 1.13 inches (28.6 mm) projection from wall.
- Ideal for architecturally sensitive environments.
Easy Installation & Testing
- Compatible with standard electrical boxes.
- Slide-switch field configuration.
- Built-in diagnostic test points for simplified maintenance.
Applications
The G1AVRF is ideal for:
- Commercial Office Buildings
- Hospitals & Healthcare Facilities
- Educational Institutions
- Hotels & Resorts
- Shopping Malls
- Airports
- Government Buildings
- Industrial Facilities
- Warehouses
- High-Rise Buildings
- Data Centers
Technical Specifications
| Description | Specification |
|---|---|
| Model | G1AVRF |
| Series | Genesis LED G1 |
| Device Type | Wall Mount Horn/Strobe |
| Housing Color | Red |
| Marking | FIRE |
| Strobe Output | 15, 30, 75 cd (Selectable) |
| Horn Output | High / Low dB (Selectable) |
| Tone Options | Temporal-3 or Continuous |
| Operating Voltage | 16 – 33 VDC / VFWR |
| Flash Rate | 1 Flash per Second |
| Mounting | Wall Mount |
| Synchronization | Compatible with Genesis Sync Protocol |
| Operating Temperature | 0°C to 50°C |
| Listings | UL, FM, CSFM, ADA Compliant |
Benefits
✅ Combined audible and visual emergency notification
✅ Field-selectable 15/30/75 candela settings
✅ High and low dB horn selection
✅ Temporal or continuous tone configuration
✅ Energy-efficient LED technology
✅ Low-profile modern design
✅ Easy installation and maintenance
✅ ADA and NFPA compliant operation
System Compatibility
The G1AVRF integrates seamlessly with:
- EST3X Life Safety Control Systems
- EST4 Fire Alarm Systems
- Signature Series Intelligent Panels
- Conventional Fire Alarm Panels
- NAC Circuits
- Voice Evacuation Systems
- Building Management Systems (BMS)
