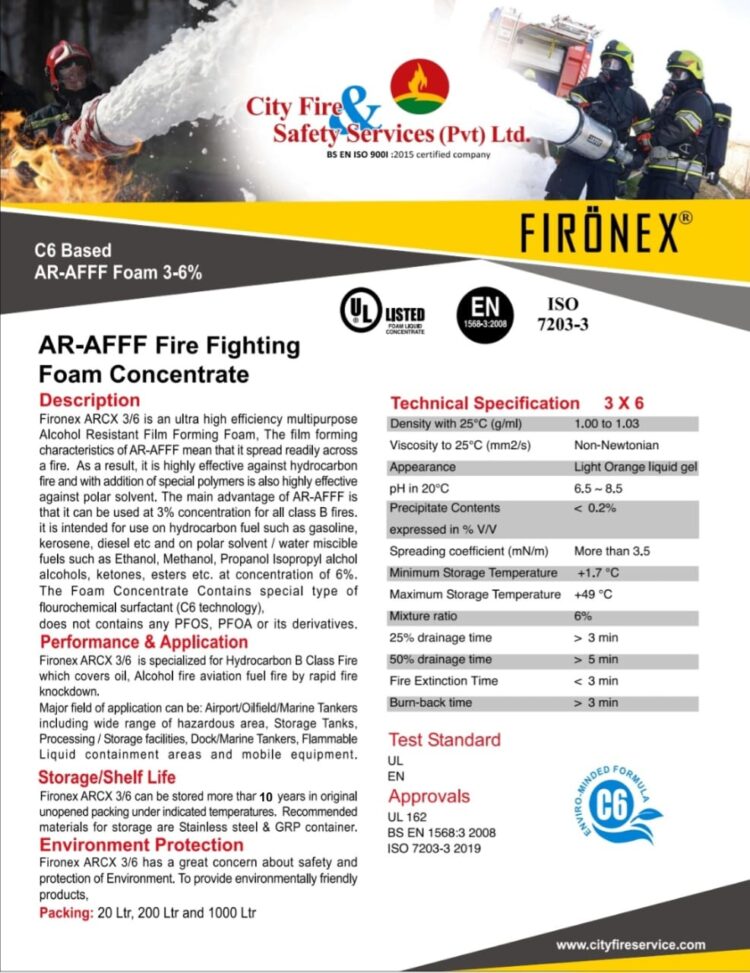

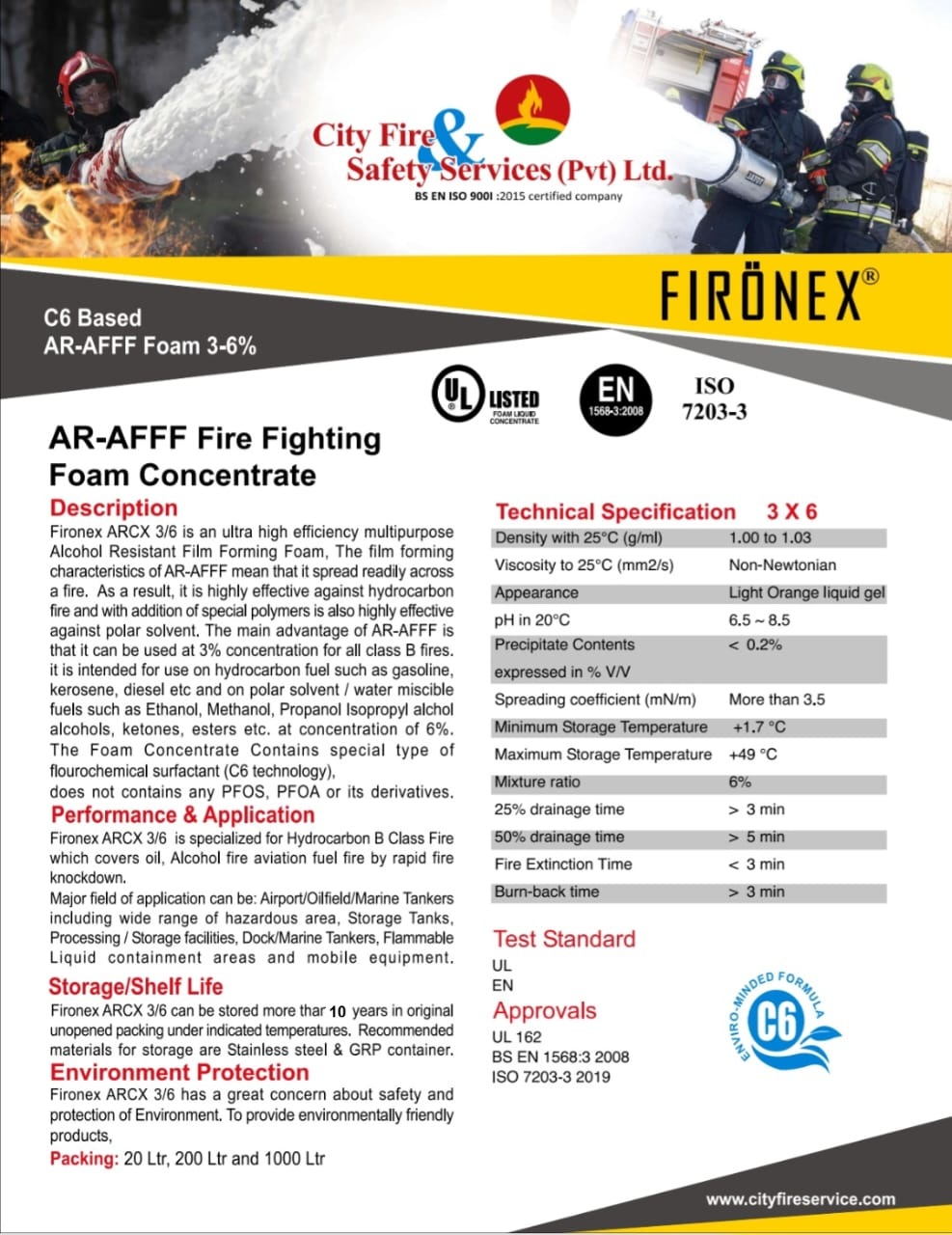

Fironex AR-AFFF ARCX 3/6 Fire Fighting Foam Concentrate
Fironex ARCX 3/6 is an ultra high efficiency multipurpose Alcohol Resistant Film Forming Foam, The film forming characteristics of AR-AFFF mean that it spread readily across a fire. As a result, it is highly effective against hydrocarbon fire and with addition of special polymers is also highly effective against polar solvent.
The main advantage of AR-AFFF is that it can be used at 6% concentration for all class B fires. it is intended for use on hydrocarbon fuel such as gasoline, kerosene, diesel etc. and on polar solvent / water miscible fuels such as Ethanol, Methanol, Propanol Isopropyl alcohol alcohols, ketones, esters etc. at same concentration of 6%.
The Foam Concentrate Contains special type of fluorochemical surfactant (C6 technology), does not contains any PFOS, PFOA or its derivatives.
Technical Specification 3 X 6
| Density with 25°C (g/ml) | 1.00 – 1.03 |
| Viscosity to 25°C (mm2/s) | Non-Newtonian |
| Appearance | Light Orange Liquid Gel |
| pH in 20°C | 6.0 ~ 8.5 |
| Precipitate Contents expressed in % V/V | < 0.2% |
| Spreading coefficient (mN/m) | More Than 3.5 |
| Minimum Storage Temperature | + 1.7°C |
| Maximum Storage Temperature | + 49°C |
| Mixture ratio | 6% |
| 25% drainage time | > 3 min |
| 50% drainage time | > 5 min |
| Fire Extinction Time | < 3 min |
| Burn-back time | > 3 min |
Storage and Handling
Fironex ARCX 3/6 can be stored more than 07 years in original unopened packing under indicated temperatures. Recommended materials for storage are Stainless steel & GRP container.
Environmental Protection
Fironex ARCX 3/6 has a great concern about safety and protection of Environment. To provide environmentally friendly products.
Test Standard and Approval
| UL | UL 162 |
| EN | BS EN 1568:3 2008 ISO 7203-3 2019 |
Performance and Application
AR-AFFF is specialized for Hydrocarbon B Class Fire which covers oil, Alcohol fire aviation fuel fire by rapid fire knockdown.
Major field of application can be: Airport/Oilfield/Marine Tankers including wide range of hazardous areas. Storage Tanks, Processing / Storage facilities, Dock/Marine Tankers, Flammable Liquid containment areas and mobile equipment.
Packing: 20 liters, 200 liters, and 1,000 liters.
