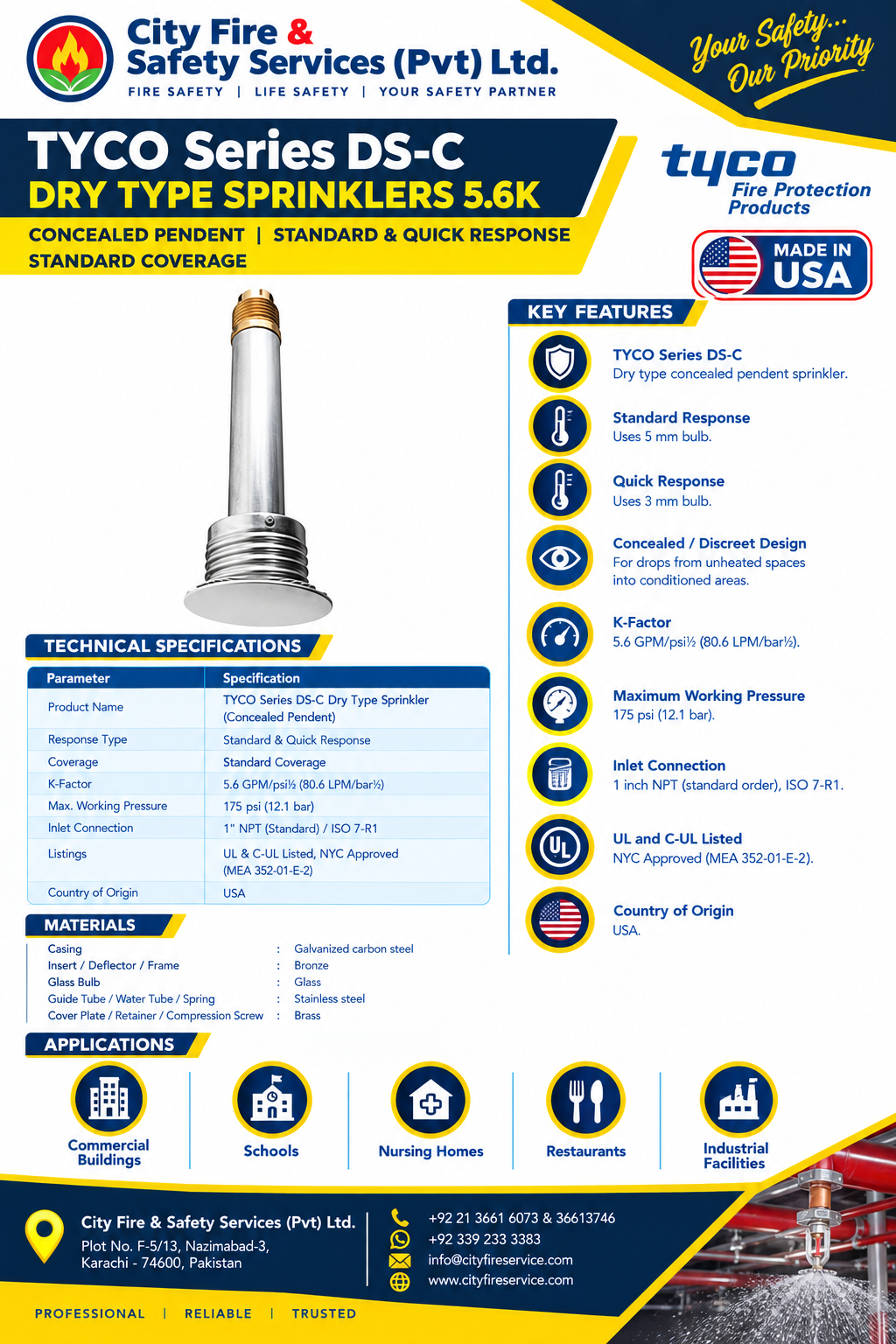

Dry Type Sprinklers 5.6K Concealed Pendent Standard and Quick Response, Standard Coverage
General Description:
TYCO Series DS-C Dry Type Sprinklers, 5.6K Concealed Pendent, Standard (5 mm Bulb) and Quick Response (3 mm Bulb) and Standard Coverage. This type of sprinkler is typically used to provide a sprinkler drop from an unheated attic into an area where aesthetics is a concern, such as nursing homes, restaurants, and schools.
Specification:
- Approvals UL and C-UL Listed NYC Approved under MEA 352-01-E-2
- Discharge Coefficient K=5.6 GPM/psi1/2 (80,6 LPM/bar1/2)
- Maximum Working Pressure 175 psi (12,1 bar)
- Inlet Thread Connections 1 inch NPT (Standard Order) ISO 7-R1
- Inlet & Plug: Copper
- Casing : Galvanized Carbon Steel
- Insert: Bronze
- Bulb Seat & Yoke : Stainless Steel
- Bulb: Glass
- Deflector & Frame: Bronze
- Guide Tube & Water Tube: Stainless Steel
- Spring: Stainless Steel Gasketed Spring
- Plate Seal: Beryllium Nickel w/Teflon
- Support Cup: Chrome Plated Steel
- Guide Pins & Ejection Spring: Stainless Steel
- Cover Plate, Retainer & Compression Screw: Brass
