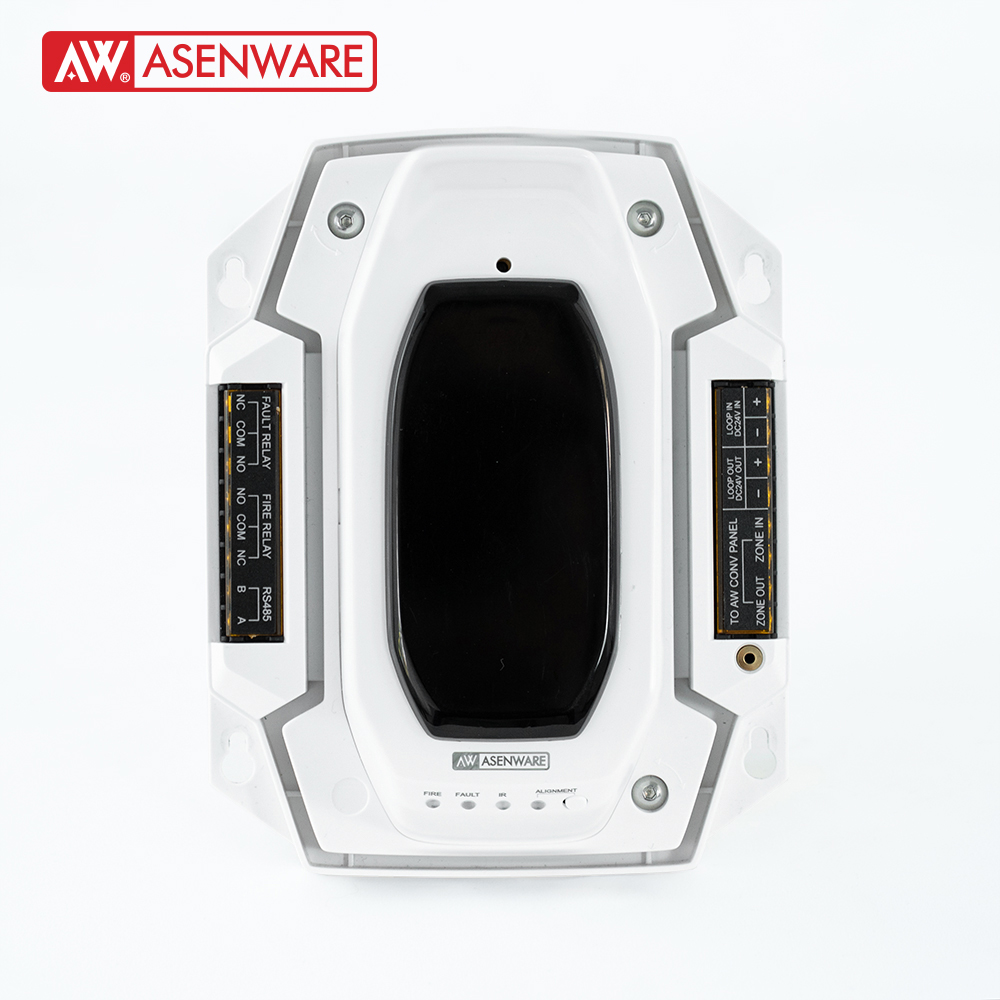

Reflective Optical Beam Smoke Detector – AW-D130C
Conventional Fire Alarm Control System (LPCB Approved)
The AW-D130C Reflective Optical Beam Smoke Detector is designed for conventional fire alarm control systems and is LPCB Approved. It incorporates high-precision symmetrical infrared laser technology, ensuring stable performance, long-range detection, and dependable fire protection.
Its practical housing design offers flexible terminal connections for easy installation and seamless integration with compatible conventional fire alarm control panels.
Product Overview
The detector continuously transmits an infrared beam to a prism reflector and monitors the returned signal. When smoke interrupts the beam beyond the preset alarm threshold, an alarm condition is activated.
The AW-D130C is ideally suited for large indoor open areas, providing early smoke detection while minimizing the number of detectors required.
Key Features
- Conventional fire alarm system compatibility
- LPCB Approved
- Built-in isolation function
- Infrared remote control operation
- High-precision symmetrical infrared laser
- Reliable long-distance smoke detection
- Suitable for warehouses and open indoor spaces
- EN54-12 compliant
- Detection distance: 5–160 meters
- Easy alignment and maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| System Type | Conventional |
| Main Voltage | LOOP 24V or DC 12–24V |
| Working Current | Static ≤10mA @ DC 24V |
| Alarm Current | ≤15mA @ DC 24V |
| Laser Concentricity | ≤1° @ 160m |
| Detection Distance | 5–160 m |
| Dimensions | 184.3 × 143.3 × 120 mm |
| Operating Temperature | -10°C to +50°C |
| Relative Humidity | ≤95% RH (Non-condensing) |
| Standard | EN54-12 |
| Approval | LPCB Approved |
Typical Applications
- Warehouses
- Industrial Buildings
- Logistics Centers
- Aircraft Hangars
- Shopping Centers
- Exhibition Halls
- Power Plants
- Sports Facilities
- Large Commercial Buildings
- High Ceiling Structures
Advantages
- Early smoke detection over long distances
- Reduced installation cost compared with multiple point detectors
- Simple installation and maintenance
- Stable performance in large open environments
- Reliable fire protection for critical facilities
