đź”” Sprinkler System Alarm Bell (Water Motor Gong Alarm)
Origin: Fujian, China
🔧 Product Overview

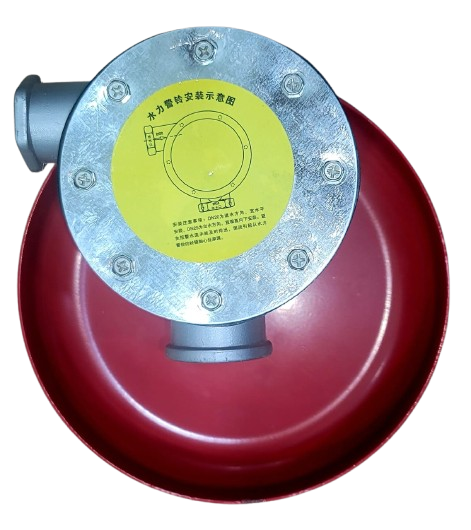

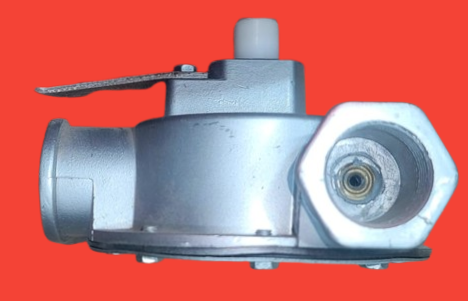

The Water Motor Gong, also known as the Sprinkler System Alarm Bell, is a hydraulically driven audible alarm that functions without any electrical power.
When the sprinkler system is activated—due to fire or pressure discharge—water flows through the alarm body, spinning the impeller which drives the shaft and striker assembly. This motion generates a continuous ringing sound as long as water flow persists, providing an immediate and reliable indication of sprinkler activation.
Built for high reliability and durability, this alarm ensures dependable performance in commercial, industrial, and residential fire protection systems.
⚙️ Technical Specifications
| Parameter | Details |
|---|---|
| Country of Origin | China |
| Material | High-Grade Iron |
| Surface Finish | Fusion-Bonded Epoxy (FBE) Coating |
| K Factor | 5.28 |
| Alarm Pressure | ≤ 5 PSI (0.035 MPa) |
| Alarm Sound Level | ≥ 70 dB @ 5 PSI |
| Water Pressure Range | 5 – 175 PSI |
| Drive Shaft Material | Aluminum Alloy |
| Size | DN 20 Ă— DN 25 |
| Gross Weight | 1.0 kg |
| Selling Unit | Single Item |
đź’ˇ Key Features & Benefits
✅ No Electrical Power Required – Operates hydraulically for reliable performance during power outages.
✅ Durable Construction – FBE-coated iron body ensures superior corrosion resistance and long service life.
✅ High Sensitivity – Rapid response to sprinkler water flow for immediate alarm activation.
✅ Clear Audible Output – Produces a loud ringing sound above 70 dB for effective alert coverage.
✅ Easy Installation & Maintenance – Compact, robust, and user-friendly design suitable for a wide range of system configurations.
🏠Typical Applications
-
Automatic sprinkler systems in commercial and residential complexes
-
Industrial facilities and manufacturing plants
-
Warehouses and logistics centers
-
Hospitals, schools, and high-rise buildings
