🚒 SMOKE EJECTOR / TURBO VENTILATOR
High-Performance Ventilation for Firefighting Professionals
The Turbo Ventilator is a powerful, petrol-driven ventilation system engineered for demanding firefighting environments. Designed to rapidly remove smoke, heat, and hazardous gases, it significantly improves visibility and air quality in fire-affected areas.
Whether deployed in rescue operations, fire suppression or confined space ventilation, this high-performance unit ensures faster, safer, and more efficient operations for firefighting professionals.
🔥 Key Features
Powerful Airflow
Delivers up to 50,200 – 56,200 m³/h airflow, enabling rapid removal of smoke and toxic gases.
Portable & Easy Operation
Equipped with a 4-stroke 6.5 HP engine, lightweight design (approx. 44 kg), and easy handling for quick deployment.
Adjustable Airflow Distance
Flexible airflow range from 0.9 m to 6 m, adaptable to different operational environments.
Durable Construction
Built with a heavy-duty epoxy-coated circular frame, ensuring long-lasting performance in harsh conditions.
Low Noise Operation
Operates at approximately 93 dB, balancing power and operational comfort.
Extended Runtime
Provides up to 60–90 minutes continuous operation, reducing downtime during critical missions.
📊 Technical Specifications
| Feature | Details |
|---|---|
| Model | SWAN SW 200 |
| Engine | 4-Stroke Petrol Engine |
| Power Output | 6.0 – 6.5 HP |
| Displacement | 200cc |
| Airflow | 50,200 m³/h |
| Propeller | 20” (5-Blade) |
| Airflow Distance | 0.9 – 6 m |
| Noise Level | Approx. 93 dB |
| Weight | Approx.39 kg |
|

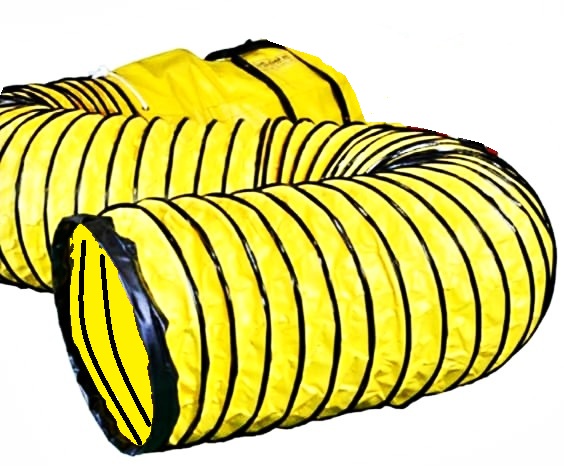

Spiral Ventilation Ducting Support: Continuous spring steel wire for structural integrity |
Optional ( Dia 24 inch x 20 ft – 30 ft) |
| Frame | Circular Pipe |
| Runtime | 60–90 Minutes |
| Warranty | 3 Months |
| Origin | China |
🔧 Applications
- Fire Rescue Operations
- Smoke Ventilation in Buildings
- Fire Suppression Support
- Industrial & Commercial Fire Safety
- Residential Emergency Response
✅ Why Choose This Ventilator?
✔ Fast smoke extraction
✔ Reliable petrol-powered performance
✔ Rugged and durable design
✔ Easy mobility and deployment
✔ Essential for modern firefighting operations
