Ziton Conventional Fire Alarm Devices
Reliable Fire Detection Solutions
Ziton offers a range of high-quality fire detection devices engineered to provide reliable and early fire detection for commercial, industrial, educational, healthcare, and residential applications. Designed to comply with international fire safety standards, Ziton detectors deliver dependable performance, easy installation, and long-term operational reliability for conventional fire alarm systems.
Product

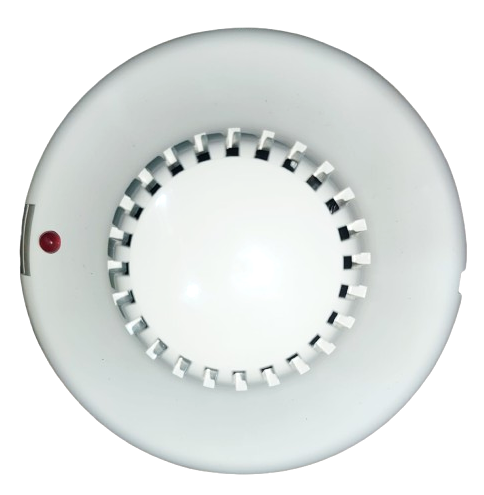

Z630-1 Optical Smoke Detector
The Ziton Z630-1 is a conventional photoelectric (optical) smoke detector designed to provide early detection of slow-burning and smouldering fires. Utilizing advanced light-scatter optical sensing technology, it offers high sensitivity, excellent stability, and dependable performance in a wide range of commercial and industrial fire alarm applications. It is particularly suitable for environments with air conditioning and modern building interiors.
Key Features
- Advanced Photoelectric (Optical) Smoke Detection
- Early Response to Slow-Burning & Smouldering Fires
- EN54 Part 7 Certified
- Low Profile Modern Design
- High Immunity to Air Movement
- Reliable Alarm LED Indication
- Plug-in Detector Base
- Simple Installation & Maintenance
- Long-Term Operational Stability
- Compatible with Ziton Conventional Fire Alarm Systems
Technical Specifications
| Description | Specification |
|---|---|
| Model | Z630-1 |
| Device Type | Conventional Optical Smoke Detector |
| Detection Principle | Photoelectric Light Scatter |
| Standard | EN54 Part 7 |
| Operating Voltage | 15–30 VDC |
| Wiring | 2-Wire Conventional Zone |
| Coverage Area | Up to 100 m²* |
| Alarm Indication | Red LED |
| Ingress Protection | IP32 |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | 20–95% RH (Non-Condensing) |
| Mounting | Surface or Recessed Base |
| Colour | White |
*Coverage subject to local fire codes and installation standards.
Typical Applications
- Commercial Buildings
- Office Complexes
- Hotels
- Hospitals
- Schools & Universities
- Shopping Malls
- Warehouses
- Industrial Facilities
- Residential Buildings
Benefits
✔ Fast & Reliable Smoke Detection
✔ Excellent Performance for Smouldering Fires
✔ Easy Installation & Maintenance
✔ Low False Alarm Rate
✔ EN54 Approved Design
✔ Durable & Reliable Construction
✔ Ideal for Conventional Fire Alarm Systems
