🧯 HFC-227ea Clean Agent Fire Suppression System
Complete Turnkey Solution
Overview
The HFC-227ea Clean Agent Fire Suppression System is a high-performance, environmentally responsible fire protection solution designed for total flooding of enclosed hazards. The system suppresses fire within 10 seconds, ensuring rapid control with no residue, no equipment damage, and minimal downtime.
It is ideally suited for environments containing sensitive electronics, mission-critical infrastructure, and high-value assets. The system is engineered using advanced hydraulic flow calculation software, allowing precise design for complex room geometries, long pipe runs, and large protected volumes.
Key Features & Advantages
🔥 Rapid Fire Suppression
• Fire extinguishment in less than 10 seconds
🌱 Environmentally Responsible Clean Agent
• Meets modern environmental and sustainability standards
👥 Safe for Occupied Areas
• Non-toxic at design concentrations
🧼 Zero Residue & Non-Conductive
• No cleanup required; ideal for sensitive equipment
💰 Cost-Effective Over Lifecycle
• Easy installation, low maintenance, and long service life
⚙️ High-Performance Discharge System
• Agent storage pressure: 25 bar
Typical Applications
🖥️ Data Centers & Telecommunication Rooms
🏥 Hospitals & Medical Facilities
🎨 Museums, Art Galleries & Archives
💰 Bank Vaults & Strong Rooms
🖥️ Server, Computer & Telephone Equipment Rooms
⚡ Electrical Switchgear & Generator Rooms
🚢 Marine, Offshore, Oil & Gas Facilities
📚 Libraries, Laboratories & Research Centers
🤖 Automation, Robotic & EDP Rooms
🏭 Processing, Power & Chemical Plants
Agent Cylinder & Nitrogen Driver Specifications
| Model No. | Nominal Capacity (L) | Agent Weight (kg) | N₂ Driver Pressure (bar) |
|---|---|---|---|
| CFS-23 | 27.0 | 10 – 26 | 25 / 42 |
| CFS-34 | 40.0 | 20 – 38 | 25 / 42 |
| CFS-50 | 63.0 | 32 – 60 | 25 / 42 |
| CFS-75 | 89.0 | 44 – 85 | 25 / 42 |
| CFS-100 | 115.4 | 57 – 110 | 25 / 42 |
| CFS-150 | 175.0 | 86 – 168 | 25 / 42 |
Flow System – Standard Configuration
✔ Stabilized for external and variable environmental conditions
✔ Simple and reliable configuration for regular and single-zone rooms
✔ Clean, colorless, odorless, and non-contaminating agent
✔ Designed for high-value and sensitive installations
Complete System Components & Scope of Supply
Fire Detection & Control System
🖥️ Fire Suppression Control Panel
• Microprocessor-based clean agent releasing panel
• Automatic & manual discharge logic
• Integrated alarm, abort, and supervisory functions
🔥 Smoke Detectors
• High-sensitivity photoelectric / addressable type
🌡️ Heat Detectors
• Fixed temperature / rate-of-rise type
🖐 Manual Call Point (MCP)
• Break-glass type for emergency manual activation
🔊 Sounder with Flash Beacon
• Audible and visual pre-discharge & discharge warning
Suppression & Discharge Hardware

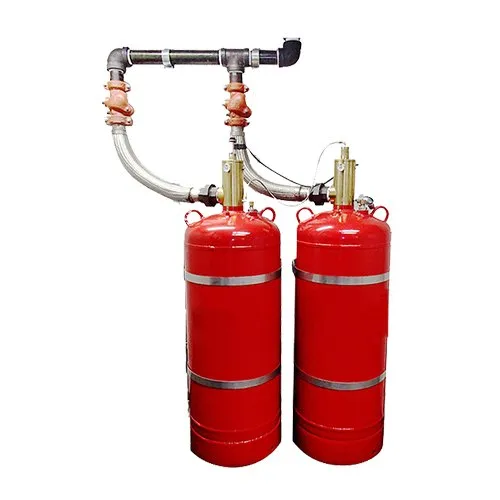

⚙️ Agent Storage & Release Assembly
• HFC-227ea agent cylinders
• Solenoid valves
• Syphon tubes
• Pressure gauges
• Flexible discharge hoses
• Discharge nozzles
• Heavy-duty wall / floor mounting brackets
Piping & Network Infrastructure
🧱 MS Pipe Networking (Schedule-40)
• Seamless mild steel piping
• Designed as per hydraulic flow calculations
• Includes all fittings, supports, bends, and reducers
• Surface finished / corrosion protected as required
Electrical Wiring Works
🔌 Complete System Wiring
• Fire-rated cables
• Detection loops, control wiring, releasing circuits
• Proper tagging, termination, and routing
Installation, Testing & Commissioning
🛠️ Installation
• Executed by trained and certified technicians
• In accordance with approved drawings and standards
🧪 Testing & Commissioning
• Functional testing of detectors and control panel
• Release circuit and solenoid valve testing
• Alarm, sounder, beacon, and MCP verification
• Final system performance validation
📋 Documentation & Handover
• As-built drawings
• Test & commissioning reports
• Operation & maintenance manuals
Condition & Availability
✅ Brand New Systems – Made in China
✅ Refurbished Systems – European / USA Origin
Conclusion
The HFC-227ea Clean Agent Fire Suppression System provides a complete, reliable, and intelligent fire protection solution, integrating early detection, precise control, rapid discharge, and robust engineering. It ensures maximum asset protection, personnel safety, and operational continuity for critical facilities.
