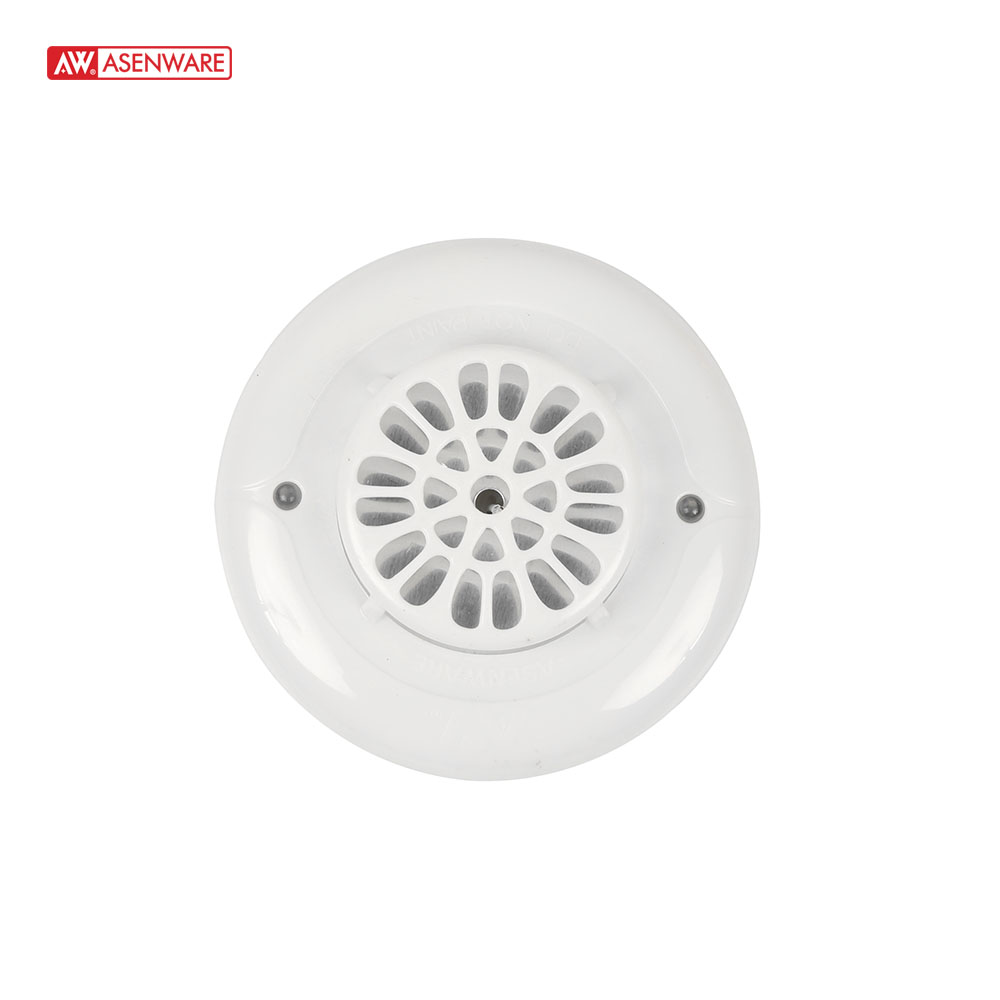

Addressable Heat Detector – AW-D102
Compatible with AW-FP100 Series Addressable Fire Alarm Control Panels
Product Overview
The AW-D102 Addressable Heat Detector is an intelligent Rate-of-Rise and Fixed Temperature Heat Detector designed for modern addressable fire alarm systems. It continuously communicates with the fire alarm control panel, allowing each detector to be individually identified and monitored.
Every detector is assigned a unique electronic address, enabling precise location identification, improved maintenance, and rapid fire response. The detector combines Rate-of-Rise and Fixed Temperature (A2R) sensing for dependable protection in environments where smoke detectors may not be suitable.
Product Features
- Addressable Analog Communication
- Compatible with AW-FP100 Series Addressable Fire Alarm Control Panels
- Rate-of-Rise Heat Detection (7.1°C Rise Within 5 Seconds)
- Fixed Temperature Alarm at 57°C (A2R)
- Low Standby Current (≤2.5 mA)
- Two-Wire Loop Connection
- Dual Red LED Status Indicators
- Flashing: Standby
- Steady ON: Alarm
- Remote Testing via Fire Alarm Control Panel
- Separate Detector Base for Easy Installation
- High Reliability and Stable Performance
- EN54-5 Compliant
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AW-D102 |
| Detection Method | Rate-of-Rise & Fixed Temperature |
| Operating Voltage | 18–28V DC |
| Standby Current | ≤2.5 mA |
| Alarm Current | ≤3 mA |
| Fixed Temperature | 57°C (A2R) |
| Operating Temperature | –10°C to +50°C |
| Diameter | Ø99.8 mm |
| Installation | Separate Base |
| Standard | EN54-5:2000 |
Typical Applications
- Office Buildings
- Hotels
- Commercial Buildings
- Industrial Plants
- Warehouses
- Shopping Centres
- Electrical Rooms
- Boiler Rooms
- Kitchens
- Parking Areas
