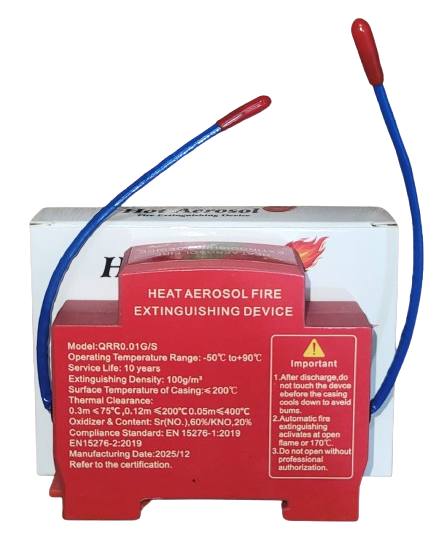

🔥 Fire Protection Breaker – Automatic Fire Extinguishing Device (DIN Rail Mount)
The Arabia Fire Protection Breaker 63 Amp is an advanced heat-activated automatic aerosol fire suppression device specially designed for electrical cabinets, DB boxes, server racks, UPS systems, solar inverter panels, telecom cabinets, and enclosed control panels.
This smart device continuously monitors internal temperature. When abnormal heat rise occurs and the preset activation temperature is reached, it automatically releases a non-conductive, residue-free aerosol fire extinguishing agent to suppress fire at its early stage—preventing spread to surrounding wiring and sensitive equipment.
Its DIN rail mount design allows fast, secure installation inside electrical panels without disturbing wiring layout. With maintenance-free operation and a 10-year service life, it provides reliable protection for critical electrical and electronic systems.
📌 Technical Specifications
| Feature | Details |
|---|---|
| Product Type | Fire Protection Breaker / Automatic Fire Extinguishing Device |
| Model | QRR0.01G/S |
| Rated Current | 63 Amp |
| Mounting Type | DIN Rail |
| Activation Method | Heat-Activated (Automatic) |
| Spray Release Time | ≥ 10 Seconds |
| Applicable Temperature Range | 50°C – 90°C |
| Surface Temperature (Casing) | ≤ 200°C |
| Protected Space | ≥ 0.25 m³ |
| Extinguishing Density | 100 g/m³ |
| Compliance Standard | EN 15276-1:2019 & EN 15276-2:2019 |
| Fire Extinguishing Agent Composition | Sr(NO₃)₂ – 60% / KNO₃ – 20% |
| Manufacturing Date | December 2025 |
| Service Life / Expiry | 10 Years |
| Country of Origin | Made in China |
⭐ Key Highlights
✔️ Automatic Fire Suppression – Activates instantly at high temperature
✔️ Electrical Panel Protection – Ideal for DBs, control panels, and enclosures
✔️ Compact DIN Rail Design – Easy installation in standard panels
✔️ Fast Response – Minimum 10-second discharge time
✔️ Certified Performance – Complies with EN standards
✔️ Long Service Life – 10 years reliability
⚡ Typical Applications
✅ Electrical Distribution Boards (DBs)
✅ Control Panels & MCC Panels
✅ Server Racks & Data Cabinets
✅ Industrial Electrical Systems
✅ Battery & UPS Cabinets
⚠️ Important Notes
- Designed for enclosed small compartments (≥ 0.25 m³)
- Not intended for open-area fire suppression
- Install as per manufacturer guidelines for effective coverage
