Fire Sprinkler Systems & Accessories
Precision Engineering. Reliable Fire Protection.

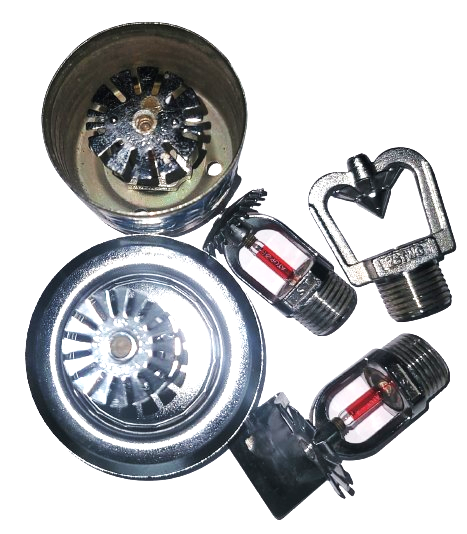

City Fire & Safety Services (Pvt.) Limited offers a comprehensive range of fire sprinklers and accessories for residential, commercial, and industrial applications. Our range includes upright, pendant, concealed pendant, and sidewall sprinklers, along with escutcheon plates and open-type water mist nozzles.

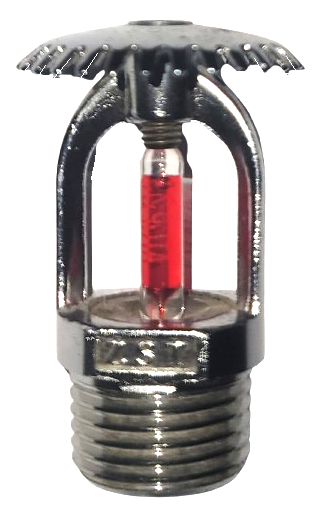

01. Fire Sprinkler – Upright Type
Reliable Protection for Exposed-Piping Systems
Designed for installation above sprinkler piping, the upright sprinkler distributes water downward and outward to protect the designated area. Ideal for industrial facilities, warehouses, and buildings with exposed ceilings.
Technical Specifications
| Feature | Specification |
|---|---|
| Type | Upright |
| Connection | 1/2″ NPT |
| Nominal Size | DN15 |
| Temperature Rating | 68°C |
| Maximum Working Pressure | 7 bar |
| Finish | Zinc / Chrome |
| Origin | China |
Key Benefits: Efficient water distribution · Durable construction · Suitable for exposed piping

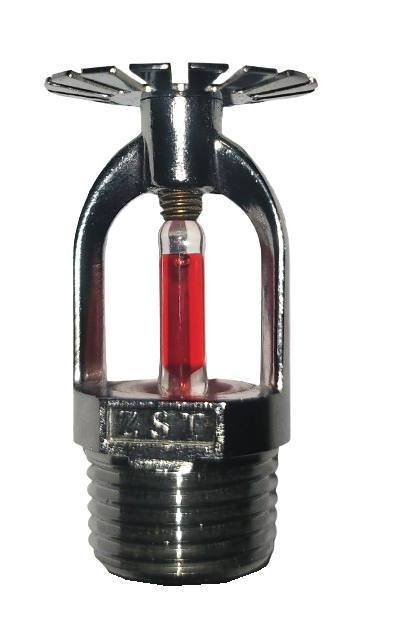

02. Fire Sprinkler – Pendant Type
Effective Protection with a Clean Ceiling Finish
Installed below the piping, the pendant sprinkler distributes water downward across the protected area. Its compact design makes it suitable for offices, hotels, commercial buildings, and residential properties.
Technical Specifications
| Feature | Specification |
|---|---|
| Type | Pendant |
| Connection | 1/2″ NPT (DN15) |
| Glass Bulb | 3 mm, red (as specified) |
| Temperature Rating | 68°C |
| Optional Ratings | 57°C / 79°C / 93°C |
| Working Pressure | 2–7 bar |
| Test Pressure | 12 bar, subject to model |
| K-Factor | 5.6 (80 metric) |
| Frame | Zinc alloy, subject to model |
| Finish | Chrome |
| Origin | China |
Key Benefits: Downward water distribution · Compact design · Multiple temperature options

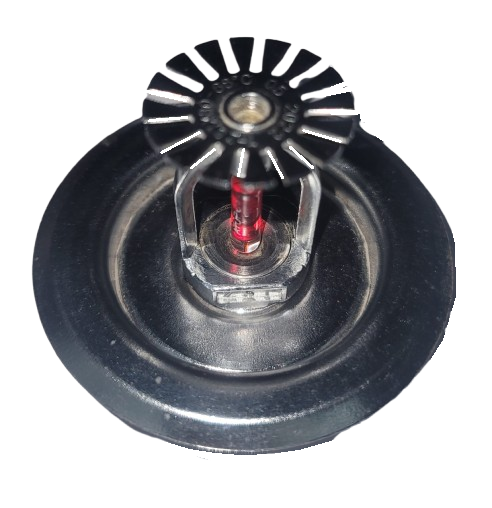

03. Fire Sprinkler – Concealed Pendant Type
Discreet Design. Integrated Protection.
The concealed pendant sprinkler is designed for installations where appearance matters. Its recessed body and decorative cover plate provide a neat ceiling finish while maintaining the sprinkler’s intended operation.
Technical Specifications
| Feature | Specification |
|---|---|
| Type | Concealed Pendant |
| Connection | 1/2″ NPT (DN15), subject to model |
| Temperature Rating | 68°C, subject to model |
| Working Pressure | 2–7 bar, subject to model |
| K-Factor | 5.6 (80 metric), subject to model |
| Frame | Model-specific |
| Cover Plate | Chrome finish, subject to model |
| Dimensions | Approx. Ø85 × 45 mm; verify model |
| Origin | China |
Key Benefits: Concealed appearance · Decorative finish · Designed for compatible ceiling installations
Note: Use only the cover plate and components specified for the exact concealed sprinkler model.

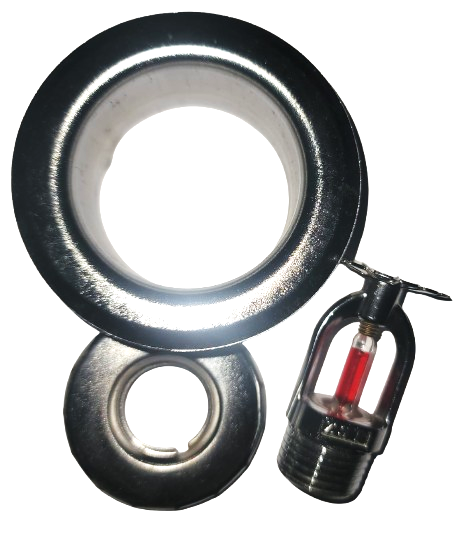

04. Fire Sprinkler Escutcheon Plate – Recessed Type
A Professional Finish for Sprinkler Installations
The recessed, two-piece escutcheon plate covers the gap around a sprinkler pipe penetration, helping achieve a neat and professional ceiling finish.
Technical Specifications
| Feature | Specification |
|---|---|
| Type | Recessed, two-piece |
| Material | Steel, subject to model |
| Finish | Chrome plated |
| Compatibility | Compatible 1/2″ sprinkler installations |
| Outer Diameter | Approx. 75 mm |
| Height / Depth | Approx. 30 mm |
| Origin | China |
Key Benefits: Clean appearance · Convenient fitting · Durable finish

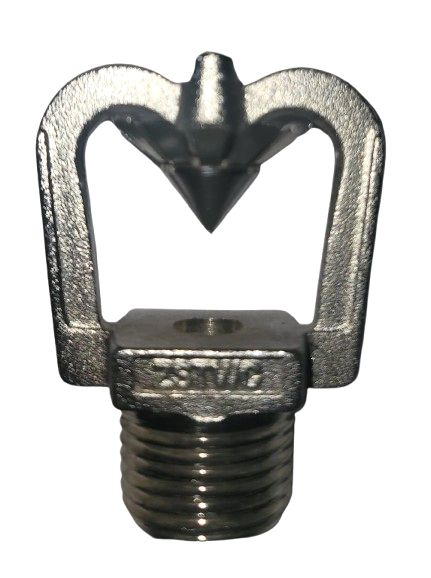

05. High-Pressure Water Mist Nozzle – Open Type
Targeted Water Discharge for Engineered Systems
The open-type water mist nozzle produces a defined spray pattern for use in compatible water mist or water spray systems. Application suitability depends on nozzle performance, operating pressure, system design, and manufacturer specifications.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ZSTWC 34/60 |
| Type | Open |
| Connection | R1/2 |
| K-Factor | 5.6 |
| Operating Pressure | 03–10 Bar |
| Spray Angle | 60° / 100°, depending on model |
| Atomization | Impact type |
| Installation | Model-dependent |
| Origin | China / Pakistan |
Key Benefits: Defined spray pattern · Open discharge design · Suitable for compatible engineered systems

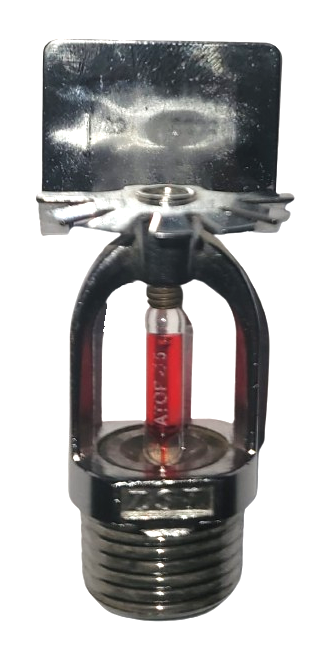

06. Fire Sprinkler – Sidewall Type
Space-Efficient Wall-Mounted Protection
The sidewall sprinkler is designed for wall-mounted installation where a suitable sidewall arrangement is specified. Its deflector directs water into the protected area according to the manufacturer’s distribution characteristics.
Technical Specifications
| Feature | Specification |
|---|---|
| Type | Sidewall |
| Connection | 1/2″ NPT (DN15) |
| Glass Bulb | 5 mm, red, as specified |
| Temperature Rating | 68°C |
| Working Pressure | 0.2–0.7 MPa |
| K-Factor | 5.6 (80 metric), subject to model |
| Frame | Zinc, subject to model |
| Finish | Chrome plated |
| Origin | China |
Key Benefits: Wall-mounted installation · Space-efficient design · Suitable for compatible sprinkler systems
Applications
Our sprinkler products and accessories can be specified for appropriately designed fire protection systems serving:
Commercial Buildings · Hotels & Resorts · Hospitals & Healthcare Facilities · Residential Buildings · Shopping Malls · Educational Institutions · Airports · Industrial Plants & Warehouses
Why City Fire?
- Comprehensive fire protection products and accessories
- Technical assistance for product selection
- Solutions for commercial, residential, and industrial projects
- Fire protection installation, inspection, and maintenance services
City Fire & Safety Services (Pvt.) Limited
Reliable Products. Professional Support. Complete Fire Protection.
